Classes
class	pvas::StaticProvider
	A Provider based on a list of SharedPV instance. More...

class	pvas::DynamicProvider
	A Provider which has no pre-configured list of names. More...

class	pvas::SharedPV
	A Shared State Process Variable (PV) More...

struct	pvas::SharedPV::Handler
	Callbacks associated with a SharedPV. More...

struct	pvas::Operation
	An in-progress network operation (Put or RPC). More...

Typedefs
typedef std::tr1::shared_ptr< SharedPV >	pvas::SharedPV::shared_pointer

typedef std::tr1::shared_ptr< const SharedPV >	pvas::SharedPV::const_shared_pointer

typedef std::tr1::weak_ptr< SharedPV >	pvas::SharedPV::weak_pointer

typedef std::tr1::weak_ptr< const SharedPV >	pvas::SharedPV::const_weak_pointer

typedef std::tr1::shared_ptr< Handler >	pvas::SharedPV::Handler::shared_pointer

typedef std::tr1::shared_ptr< const Handler >	pvas::SharedPV::Handler::const_shared_pointer

typedef std::tr1::weak_ptr< Handler >	pvas::SharedPV::Handler::weak_pointer

typedef std::tr1::weak_ptr< const Handler >	pvas::SharedPV::Handler::const_weak_pointer

typedef std::tr1::shared_ptr< Operation >	pvas::Operation::shared_pointer

typedef std::tr1::shared_ptr< const Operation >	pvas::Operation::const_shared_pointer

typedef std::tr1::weak_ptr< Operation >	pvas::Operation::weak_pointer

typedef std::tr1::weak_ptr< const Operation >	pvas::Operation::const_weak_pointer

Functions
virtual void	pvas::SharedPV::Handler::onFirstConnect (const SharedPV::shared_pointer &pv)

virtual void	pvas::SharedPV::Handler::onLastDisconnect (const SharedPV::shared_pointer &pv)
	Called when the last client disconnects. May close()

virtual void	pvas::SharedPV::Handler::onPut (const SharedPV::shared_pointer &pv, Operation &op)
	Client requests Put.

virtual void	pvas::SharedPV::Handler::onRPC (const SharedPV::shared_pointer &pv, Operation &op)
	Client requests RPC.

static shared_pointer	pvas::SharedPV::build (const std::tr1::shared_ptr< Handler > &handler, Config *conf=0)
	Allocate a new PV in the closed state.

static shared_pointer	pvas::SharedPV::buildReadOnly (Config *conf=0)
	A SharedPV which fails all Put and RPC operations. In closed state.

static shared_pointer	pvas::SharedPV::buildMailbox (Config *conf=0)
	A SharedPV which accepts all Put operations, and fails all RPC operations. In closed state.

void	pvas::SharedPV::setHandler (const std::tr1::shared_ptr< Handler > &handler)
	Replace Handler given with ctor.

Handler::shared_pointer	pvas::SharedPV::getHandler () const

bool	pvas::SharedPV::isOpen () const
	test open-ness. cf. open() and close()

void	pvas::SharedPV::open (const epics::pvData::PVStructure &value)
	Shorthand for.

void	pvas::SharedPV::open (const epics::pvData::PVStructure &value, const epics::pvData::BitSet &valid)
	Begin allowing clients to connect.

void	pvas::SharedPV::open (const epics::pvData::StructureConstPtr &type)
	Shorthand for.

void	pvas::SharedPV::close (bool destroy=false)
	Force any clients to disconnect, and prevent re-connection.

std::tr1::shared_ptr< epics::pvData::PVStructure >	pvas::SharedPV::build ()
	Create a new container which may be used to prepare to call post().

void	pvas::SharedPV::post (const epics::pvData::PVStructure &value, const epics::pvData::BitSet &changed)
	Update the cached PVStructure in this SharedPV.

void	pvas::SharedPV::fetch (epics::pvData::PVStructure &value, epics::pvData::BitSet &valid)
	Update arguments with current value, which is the initial value from open() with accumulated post() calls.

virtual std::tr1::shared_ptr< epics::pvAccess::Channel >	pvas::SharedPV::connect (const std::tr1::shared_ptr< epics::pvAccess::ChannelProvider > &provider, const std::string &channelName, const std::tr1::shared_ptr< epics::pvAccess::ChannelRequester > &requester)
	may call Handler::onFirstConnect()

virtual void	pvas::SharedPV::disconnect (bool destroy, const epics::pvAccess::ChannelProvider *provider)
	Disconnect all Channels created through the given ChannelProvider.

void	pvas::SharedPV::setDebug (int lvl)

int	pvas::SharedPV::isDebug () const

	pvas::Operation::Operation ()
	create empty op for later assignment

const epics::pvData::PVStructure &	pvas::Operation::pvRequest () const
	pvRequest blob, may be used to modify handling.

const epics::pvData::PVStructure &	pvas::Operation::value () const
	Input data.

const epics::pvData::BitSet &	pvas::Operation::changed () const
	Applies to value(). Which fields of input data are actual valid. Others should not be used.

std::string	pvas::Operation::channelName () const
	The name of the channel through which this request was made (eg. for logging purposes).

const epics::pvAccess::PeerInfo *	pvas::Operation::peer () const
	Information about peer transport and authentication.

void	pvas::Operation::complete ()
	shorthand for successful completion w/o data (Put or RPC with void return)

void	pvas::Operation::complete (const epics::pvData::Status &sts)
	Complete with success or error w/o data.

void	pvas::Operation::complete (const epics::pvData::PVStructure &value, const epics::pvData::BitSet &changed)
	Sucessful completion with data (RPC only)

void	pvas::Operation::info (const std::string &)
	Send info message to client. Does not complete().

void	pvas::Operation::warn (const std::string &)
	Send warning message to client. Does not complete().

int	pvas::Operation::isDebug () const

std::tr1::shared_ptr< epics::pvAccess::Channel >	pvas::Operation::getChannel ()

std::tr1::shared_ptr< epics::pvAccess::ChannelBaseRequester >	pvas::Operation::getRequester ()

bool	pvas::Operation::valid () const

	pvas::Operation::operator bool_type () const

Variables
bool	pvas::SharedPV::Config::dropEmptyUpdates
	default true. Drop updates which don't include an field values.

epics::pvData::PVRequestMapper::mode_t	pvas::SharedPV::Config::mapperMode
	default Mask.

Friends
struct	pvas::SharedPV::detail::SharedChannel

struct	pvas::SharedPV::detail::SharedMonitorFIFO

struct	pvas::SharedPV::detail::SharedPut

struct	pvas::SharedPV::detail::SharedRPC

struct	pvas::Operation::detail::SharedPut

struct	pvas::Operation::detail::SharedRPC

void	pvas::SharedPV::epics::pvAccess::providerRegInit (void *)

Detailed Description

PVA Server Providers, for use with a PVA epics::pvAccess::ServerContext

These are implementations of epics::pvAccess::ChannelProvider which manage "PVs", which are sources of epics::pvAccess::Channel instances. Typically SharedPV .

Two containers are provided StaticProvider, and for some special cases DynamicProvider. It is recommended to use StaticProvider where possible, with DynamicProvider for exception cases.

A StaticProvider maintains an internal lookup table of StaticProvider::ChannelBuilder (aka. SharedPV). This table is manipulated by StaticProvider::add() and StaticProvider::remove(), which can be called at any time.

A DynamicProvider does not maintain an internal lookup table. Instead it provides the DynamicProvider::Handler interface, through which remote search and connection requests are delivered.

See Server Mailbox Example for a working example.

namespace pva = epics::pvAccess;
pvas::SharedPV::shared_pointer pv(pvas::SharedPV::buildMailbox());
pvas::StaticProvider sprov("arbitrary");
pva::ServerContext::shared_pointer server(
   pva::ServerContext::create(
       pva::ServerContext::Config() .provider(sprov.provider()) ));
sprov->add("pv:name", pv);

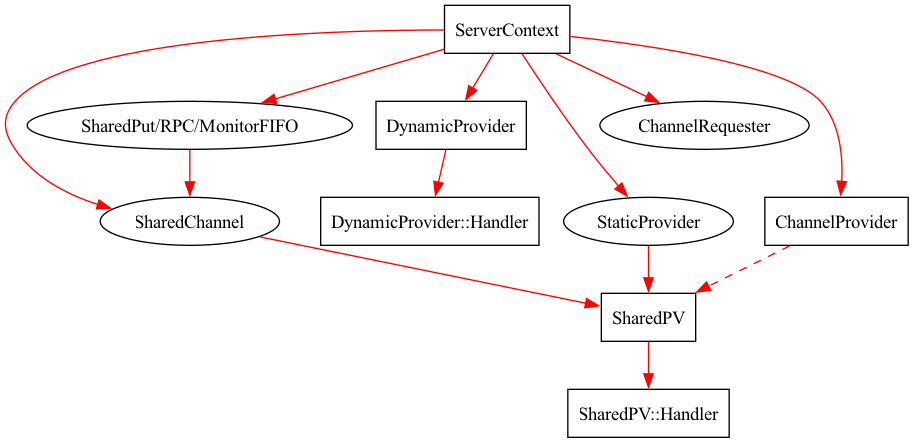

Server API shared_ptr Ownership

shared_ptr<> relationships internal to server API classes. Solid red lines are shared_ptr<>. Dashed red lines are shared_ptr<> which may exist safely in user code. Rectangles are public API classes. Circles are internal classes. "ChannelProvider" is an arbitrary ChannelProvider, possibly StaticProvider or DynamicProvider.

Internal shared_ptr<> relationships.

Typedef Documentation

◆ const_shared_pointer [1/3]

std::tr1::shared_ptr<const Operation> pvas::Operation::const_shared_pointer

Definition at line 230 of file sharedstate.h.

◆ const_shared_pointer [2/3]

std::tr1::shared_ptr<const SharedPV> pvas::SharedPV::const_shared_pointer

Definition at line 84 of file sharedstate.h.

◆ const_shared_pointer [3/3]

std::tr1::shared_ptr<const Handler> pvas::SharedPV::Handler::const_shared_pointer

Definition at line 96 of file sharedstate.h.

◆ const_weak_pointer [1/3]

std::tr1::weak_ptr<const Operation> pvas::Operation::const_weak_pointer

Definition at line 230 of file sharedstate.h.

◆ const_weak_pointer [2/3]

std::tr1::weak_ptr<const SharedPV> pvas::SharedPV::const_weak_pointer

Definition at line 84 of file sharedstate.h.

◆ const_weak_pointer [3/3]

std::tr1::weak_ptr<const Handler> pvas::SharedPV::Handler::const_weak_pointer

Definition at line 96 of file sharedstate.h.

◆ shared_pointer [1/3]

std::tr1::shared_ptr<Operation> pvas::Operation::shared_pointer

Definition at line 230 of file sharedstate.h.

◆ shared_pointer [2/3]

std::tr1::shared_ptr<Handler> pvas::SharedPV::Handler::shared_pointer

Definition at line 96 of file sharedstate.h.

◆ shared_pointer [3/3]

std::tr1::shared_ptr<SharedPV> pvas::SharedPV::shared_pointer

Definition at line 84 of file sharedstate.h.

◆ weak_pointer [1/3]

std::tr1::weak_ptr<Operation> pvas::Operation::weak_pointer

Definition at line 230 of file sharedstate.h.

◆ weak_pointer [2/3]

std::tr1::weak_ptr<Handler> pvas::SharedPV::Handler::weak_pointer

Definition at line 96 of file sharedstate.h.

◆ weak_pointer [3/3]

std::tr1::weak_ptr<SharedPV> pvas::SharedPV::weak_pointer

Definition at line 84 of file sharedstate.h.

Function Documentation

◆ build() [1/2]

std::tr1::shared_ptr< epics::pvData::PVStructure > pvas::SharedPV::build ( )

Create a new container which may be used to prepare to call post().

This container will be owned exclusively by the caller.

◆ build() [2/2]

static shared_pointer pvas::SharedPV::build	(	const std::tr1::shared_ptr< Handler > &	handler,
		Config *	conf = 0 )

static

Allocate a new PV in the closed state.

Parameters

handler	Our callbacks. May be NULL. Stored internally as a shared_ptr<>
conf	Optional. Extra configuration. If !NULL, will be modified to reflect configuration actually used.

Postcondition: In the closed state

◆ close()

void pvas::SharedPV::close ( bool destroy = false )

inline

Force any clients to disconnect, and prevent re-connection.

Parameters

destroy Indicate whether this close() is permanent for clients. If destroy=false, the internal client list is retained, and these clients will see a subsequent open(). If destory=true, the internal client list is cleared.

Postcondition: In the closed state

Note: Provider locking rules apply (

See also: provider_roles_requester_locking).

close() is not final, even with destroy=true new clients may begin connecting, and open() may be called again. A final close() should be performed after the removal from StaticProvider/DynamicProvider which will prevent new clients.

Definition at line 153 of file sharedstate.h.

◆ connect()

virtual std::tr1::shared_ptr< epics::pvAccess::Channel > pvas::SharedPV::connect	(	const std::tr1::shared_ptr< epics::pvAccess::ChannelProvider > &	provider,
		const std::string &	channelName,
		const std::tr1::shared_ptr< epics::pvAccess::ChannelRequester > &	requester )

virtual

may call Handler::onFirstConnect()

Note: Provider locking rules apply (

See also: provider_roles_requester_locking).

Implements pvas::StaticProvider::ChannelBuilder.

◆ disconnect()

virtual void pvas::SharedPV::disconnect	(	bool	destroy,
		const epics::pvAccess::ChannelProvider *	provider )

virtual

Disconnect all Channels created through the given ChannelProvider.

destroy==true if the ChannelProvider is shutting down.

Implements pvas::StaticProvider::ChannelBuilder.

◆ onFirstConnect()

virtual void pvas::SharedPV::Handler::onFirstConnect ( const SharedPV::shared_pointer & pv )

inlinevirtual

Definition at line 98 of file sharedstate.h.

◆ onLastDisconnect()

virtual void pvas::SharedPV::Handler::onLastDisconnect ( const SharedPV::shared_pointer & pv )

inlinevirtual

Called when the last client disconnects. May close()

Definition at line 100 of file sharedstate.h.

◆ open() [1/3]

void pvas::SharedPV::open ( const epics::pvData::PVStructure & value )

Shorthand for.

open(value, pvd::BitSet().set(0))

pvas::SharedPV::open

void open(const epics::pvData::PVStructure &value)

Shorthand for.

◆ open() [2/3]

void pvas::SharedPV::open	(	const epics::pvData::PVStructure &	value,
		const epics::pvData::BitSet &	valid )

Begin allowing clients to connect.

Parameters

value	The initial value of this PV. (any pending Get/Monitor operation will complete with this)
valid	Only these marked fields are considered to have non-default values.

Exceptions

std::logic_error if not in the closed state.

Postcondition: In the opened state

Note: Provider locking rules apply (

See also: provider_roles_requester_locking).

◆ open() [3/3]

void pvas::SharedPV::open ( const epics::pvData::StructureConstPtr & type )

Shorthand for.

open(*pvd::getPVDataCreate()->createPVStructure(type), pvd::BitSet().set(0))

◆ Operation()

pvas::Operation::Operation ( )

inline

create empty op for later assignment

Definition at line 239 of file sharedstate.h.

◆ operator bool_type()

pvas::Operation::operator bool_type ( ) const

inline

Definition at line 280 of file sharedstate.h.

◆ peer()

const epics::pvAccess::PeerInfo * pvas::Operation::peer ( ) const

Information about peer transport and authentication.

Returns: May be NULL if no information is available

◆ post()

void pvas::SharedPV::post	(	const epics::pvData::PVStructure &	value,
		const epics::pvData::BitSet &	changed )

Update the cached PVStructure in this SharedPV.

Only those fields marked as changed will be copied in. Makes a light-weight copy.

Precondition: isOpen()==true

Exceptions

std::logic_error if !isOpen()

Note: Provider locking rules apply (

See also: provider_roles_requester_locking).

Variable Documentation

◆ dropEmptyUpdates

bool pvas::SharedPV::Config::dropEmptyUpdates

default true. Drop updates which don't include an field values.

Definition at line 86 of file sharedstate.h.

◆ mapperMode

epics::pvData::PVRequestMapper::mode_t pvas::SharedPV::Config::mapperMode

default Mask.

See also: epics::pvData::PVRequestMapper::mode_t

Definition at line 87 of file sharedstate.h.

Friends

◆ detail::SharedChannel

friend struct detail::SharedChannel

friend

Definition at line 79 of file sharedstate.h.

◆ detail::SharedMonitorFIFO

friend struct detail::SharedMonitorFIFO

friend

Definition at line 80 of file sharedstate.h.

◆ detail::SharedPut [1/2]

friend struct detail::SharedPut

friend

Definition at line 235 of file sharedstate.h.

◆ detail::SharedPut [2/2]

friend struct detail::SharedPut

friend

Definition at line 81 of file sharedstate.h.

◆ detail::SharedRPC [1/2]

friend struct detail::SharedRPC

friend

Definition at line 236 of file sharedstate.h.

◆ detail::SharedRPC [2/2]

friend struct detail::SharedRPC

friend

Definition at line 82 of file sharedstate.h.

Classes

Typedefs

Functions

Variables

Friends

Detailed Description

Server API shared_ptr Ownership

Typedef Documentation

◆ const_shared_pointer [1/3]

◆ const_shared_pointer [2/3]

◆ const_shared_pointer [3/3]

◆ const_weak_pointer [1/3]

◆ const_weak_pointer [2/3]

◆ const_weak_pointer [3/3]

◆ shared_pointer [1/3]

◆ shared_pointer [2/3]

◆ shared_pointer [3/3]

◆ weak_pointer [1/3]

◆ weak_pointer [2/3]

◆ weak_pointer [3/3]

Function Documentation

◆ build() [1/2]

◆ build() [2/2]

◆ close()

◆ connect()

◆ disconnect()

◆ onFirstConnect()

◆ onLastDisconnect()

◆ open() [1/3]

◆ open() [2/3]

◆ open() [3/3]

◆ Operation()

◆ operator bool_type()

◆ peer()

◆ post()

Variable Documentation

◆ dropEmptyUpdates

◆ mapperMode

Friends

◆ detail::SharedChannel

◆ detail::SharedMonitorFIFO

◆ detail::SharedPut [1/2]

◆ detail::SharedPut [2/2]

◆ detail::SharedRPC [1/2]

◆ detail::SharedRPC [2/2]
